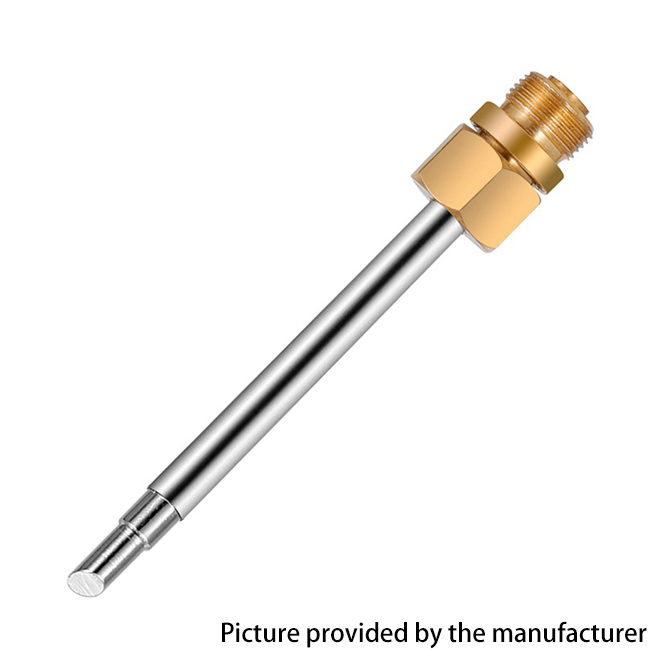

510 Thread Charging Soldering Iron for DIY Mech Mod Box Mod 8W
Features
Material:Copper
Pure copper is the surface layer has not been treated, pure copper for a long time will change color.
Generally, the main engine on the market uses 8w.
If your main body is under 40W of low power body 5-8W recommended power 5W 8-15W recommended power 8W 15-20W recommended power 10W 30W recommended power 13W 40W recommended power 18W to turn on the lowest power can tin,
Usage: The body of the pressure regulating model usually has the power off protection function of 10 seconds. The common technique is to press and release the key for 5-8 seconds and repeat for 5-8 seconds until the tinned temperature is reached. When the tinned temperature is reached, the key pressing time is shortened and the temperature is mastered by experience. For example, 5-8W soldering iron head, after successful tin melting, the temperature of the iron head reaches more than 300 degrees. If you want to control it at about 400 degrees, the time of pressing the button is about 5 seconds, and the time of releasing the hand is about 3 seconds. For example, 40W soldering head, with 20W output as an example, press the button for 5 seconds to let go and wait for 3 seconds, the iron head is reached by internal heat conduction to tin temperature, then only need to let the iron head keep or temperature up to 450 degrees, each key is about 3 seconds, let go and wait for about 5 seconds. (The above is the test data summarized by some host parameters. Please refer to the actual host. There are some differences.)
1, the first use, please in the iron head reaches 300 degrees of tin temperature, tin with solder wire, tin, the iron head commonly used position coated with solder, release the key, let the iron head cooling, clean up the excess solder, iron head left tin coating.
2, the iron head to use the appropriate temperature, manual control of constant temperature, taboo violence operation leads to the iron head temperature is too high, reduce life.
3. In the process of use, ensure that the iron head is clean and clean, to avoid premature oxidation of the surface of the iron head due to too much rosin, such as the surface of the iron head is not coated with tin, please stop using, clean up with copper wire ball, until the copper surface leaks out, and re-tin. (There is no copper wire ball, can be used as a household brush pot ball instead.)
4. It is forbidden to remove the soldering head assembly, electrode column, etc.
If the power of your box mod / mech mod is 50W, do not buy 30W and below 30W soldering head.
Package Included
1* 510 Thread Charging Soldering Iron for DIY Mech Mod Box Mod 8W
Features
Material:Copper
Pure copper is the surface layer has not been treated, pure copper for a long time will change color.
Generally, the main engine on the market uses 8w.
If your main body is under 40W of low power body 5-8W recommended power 5W 8-15W recommended power 8W 15-20W recommended power 10W 30W recommended power 13W 40W recommended power 18W to turn on the lowest power can tin,
Usage: The body of the pressure regulating model usually has the power off protection function of 10 seconds. The common technique is to press and release the key for 5-8 seconds and repeat for 5-8 seconds until the tinned temperature is reached. When the tinned temperature is reached, the key pressing time is shortened and the temperature is mastered by experience. For example, 5-8W soldering iron head, after successful tin melting, the temperature of the iron head reaches more than 300 degrees. If you want to control it at about 400 degrees, the time of pressing the button is about 5 seconds, and the time of releasing the hand is about 3 seconds. For example, 40W soldering head, with 20W output as an example, press the button for 5 seconds to let go and wait for 3 seconds, the iron head is reached by internal heat conduction to tin temperature, then only need to let the iron head keep or temperature up to 450 degrees, each key is about 3 seconds, let go and wait for about 5 seconds. (The above is the test data summarized by some host parameters. Please refer to the actual host. There are some differences.)
1, the first use, please in the iron head reaches 300 degrees of tin temperature, tin with solder wire, tin, the iron head commonly used position coated with solder, release the key, let the iron head cooling, clean up the excess solder, iron head left tin coating.
2, the iron head to use the appropriate temperature, manual control of constant temperature, taboo violence operation leads to the iron head temperature is too high, reduce life.
3. In the process of use, ensure that the iron head is clean and clean, to avoid premature oxidation of the surface of the iron head due to too much rosin, such as the surface of the iron head is not coated with tin, please stop using, clean up with copper wire ball, until the copper surface leaks out, and re-tin. (There is no copper wire ball, can be used as a household brush pot ball instead.)
4. It is forbidden to remove the soldering head assembly, electrode column, etc.
If the power of your box mod / mech mod is 50W, do not buy 30W and below 30W soldering head.
Package Included
1* 510 Thread Charging Soldering Iron for DIY Mech Mod Box Mod 8W
